Product Summary

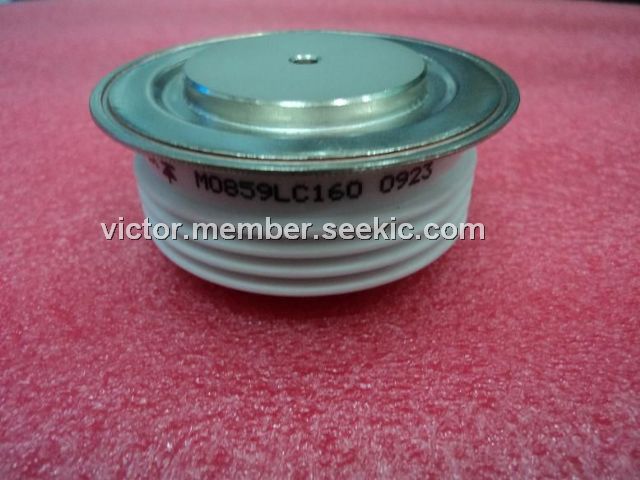

The M0859LC160 is a soft recovery diode.

Parametrics

Absolute maximum ratings: (1)repetitive peak reverse voltage, Vrrm: 1400 to 1600V; (2)Non-repetitive peak reverse voltage, Vrsm: 1500 to 1700V; (3)Maximum average forward current, Tsink=55℃, If(AV)m: 859A; (4)Maximum average forward current, Tsink=85℃, If(AV)m: 562A; (5)Maximum average forward, Tsink=85℃, If(AV)m: 319A; (6)Nominal RMS foward current, Tsink=25℃, If(AVS): 1742A; (7)DC forward current, Tsink=25℃, If(dc): 1404A; (8)peak non-repetitive surge Tp=10ms, Vrm=60%Vrrm, Ifsm: 10KA; (9)peak non-repetitive surge Tp=10ms, Vrm<10V, Ifsm2: 11KA; (10)I2t capacity for using Tp=10ms, Vrm=60%Vrrm, I2t: 500x1000 A2S; (11)I2t capacity for using Tp=10ms, Vrm<10V, I2t: 605x1000 A2S; (12)Operation temperature range, Tjop: -40 to +125℃; (13)Storage temperature range, Tstg: -40 to +150℃.

Features

Characteristics: (1)maximum peak forward voltage: max. 1.55V; (2)threshold votage: 1.17V; (3)slope resistance: 0.32mΩ; (4)maximum forward recovery voltage: 20V; (5)peak reverse current, Irrm: 20V; (6)peak reverse durrent: 50mA.

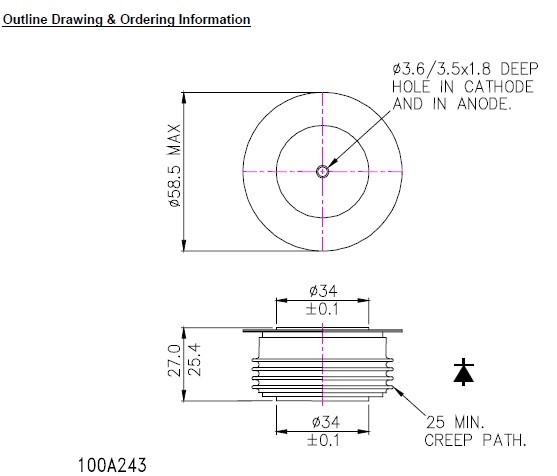

Diagrams
