Product Summary

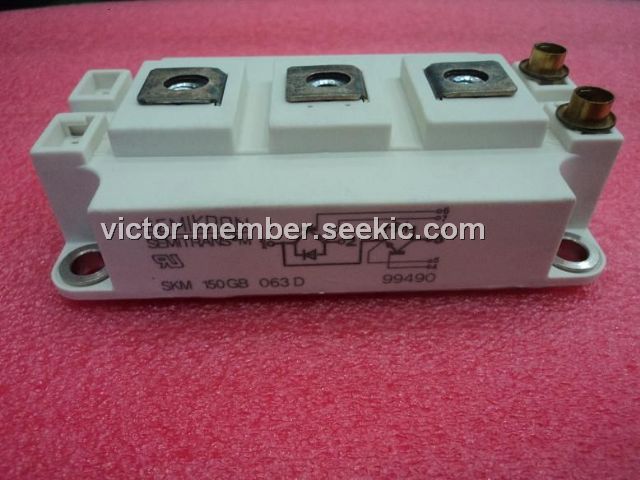

The SKM150GB063D is a superfast NPT-IGBT module.
Parametrics
Absolute maximum ratings: (1)VCES: 600V; (2)VCGR, RGE=20kW: 600V; (3)IC, Tcase = 25/70℃: 200/150A; (4)ICM, Tcase = 25/70℃, Tp=1ms: 400/300A; (5)VGES: ±20V; (6)Ptot, per IGBT, Tcase = 25℃: 675W; (7)Tj, Tstg: –40 to +150 (125); (8)Visol, AC, 1 min: 2500V; (9)humidity, DIN 40040: Class F; (10)climate, DIN IEC 68 T.1: 40/125/56.
Features
Features: (1)N channel, homogeneous Silicon structure (NPT- Non punchthrough IGBT); (2)Low tail current with low temperature dependence; (3)High short circuit capability, self limiting if term. G is clamped to E; (4)Pos. temp.-coeff. of VCEsat; (5)50 % less turn off losses 9); (6)30 % less short circuit current; (7)Very low Cies, Coes, Cres; (8)Latch-up free; (9)Fast & soft inverse CAL diodes; (10)Isolated copper baseplate using DCB Direct Copper Bonding Technology without hard mould; (11)Large clearance (13 mm) and creepage distances (20 mm).
