Product Summary

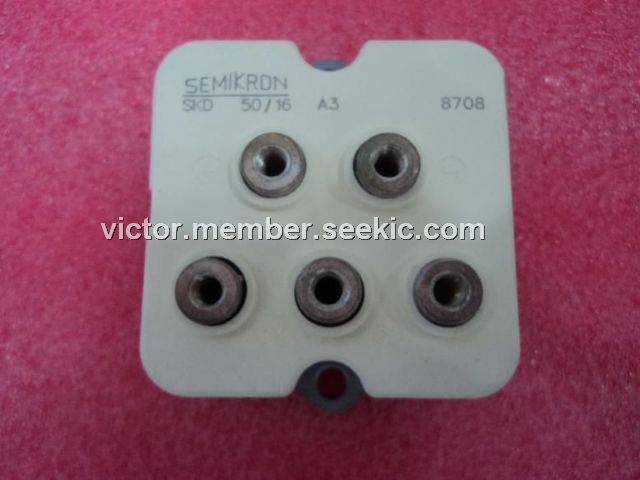

The SKD50/16A3 is a power bridge rectifier. It has a wide application in three phase rectifiers for power supplies, input rectifiers for variable frequency drivers, rectifiers for DC motor field supplies, battery charger rectifiers, as well as recommended snubber network.

Parametrics

Absolute maximum ratings: (1)Id, Ta=45℃, isolated: 10A; (2)Id, Ta=45℃, isolated: 22A; (3)Idcl, Ta=45℃, isolated: 10A; (4)Idcl, Ta=45℃, isolated: 22A; (5)Idcl, Ta=35℃, PIA/120F: 60A; (6)Ifsm, Tvj=25℃, 10ms: 750A; (7)Ifsm, Tvj=150℃, 10ms: 600A; (8)I2t, Tvj=25℃, 8.3 to 10ms: 2800A2s; (9)I2t, Tvj=150℃, 8.3 to 10ms: 1800A2s; (10)Vf, Tvj=25℃, If=150A: max.1.6V; (11)V(to), Tvj=150℃: 0.85V; (12)Rt, Tvj=150℃: 8mΩ; (13)Ird, Tvj=25℃, Vrd=Vrrm: 1000uA; (14)Ird, Tvj=150℃, Vrd=Vrrm: 10mA; (15)Trr, Tvj=25℃: 10us.

Features

Features: (1)isolated metal case with screw terminals; (2)blocking voltage up to 1600V; (3)high surgr current; (4)easy chassis mounting.
