Product Summary

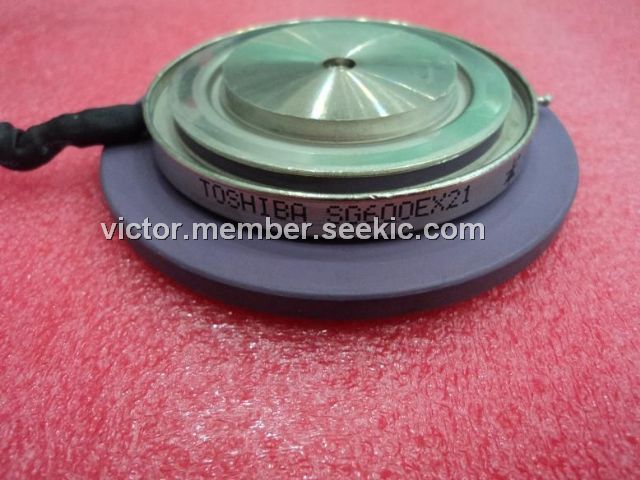

The SG600EX21 is a gate turn off thyristor (GTO).
Parametrics
Absolute maximum ratings: (1)Vrrm: 1250V; (2)Vdrm: 2500V; (3)Itqrm: 600A; (4)It(rms): 400A; (5)Itsm: 5000/5500(50HZ sine); (6)di/dt: 100; (7)Pgfm: 20W; (8)Pgrm: 8000W; (9)Vgrm: 10V; (10)Igfm: 10A; (11)Tj: 115℃; (12)Tstg: -40 to 115℃.
Features
Features: (1)Gate Turn Off Thyristor (GTO); (2)Various; (3)Thyristors; (4)V(DRM) Max.(V)Rep.Pk.Off Volt.=2.5k; (5)I(T) Max.(A) On-state Current=600.

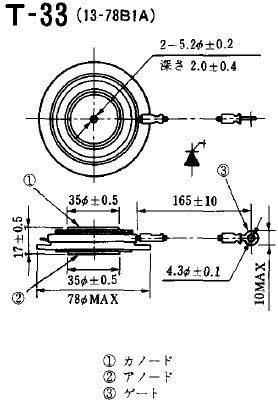

Diagrams
 |
